Power cabinet for multi-family building dwg

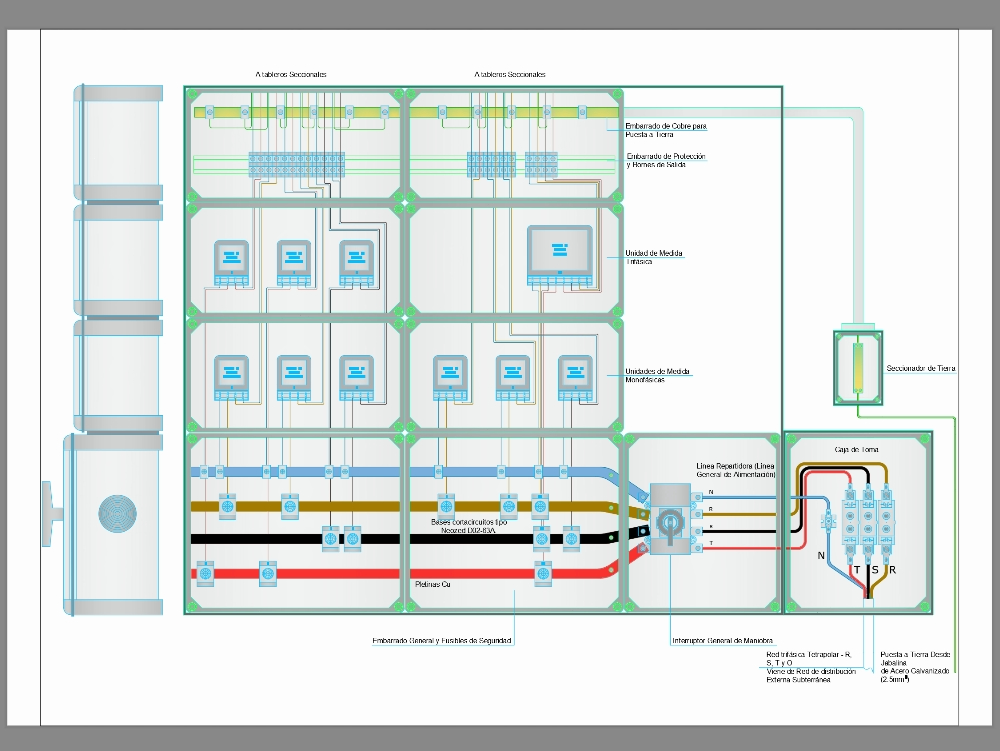

Complete detail of a main power cabinet for a 9-unit multi-family building. includes the layout of 9 single-phase meters and 1 three-phase meter; mounted in independent modules with their input and output connections clearly represented. the drawing accurately shows: main copper busbar, protective busbar and output terminals, grounding busbar, neozed-type circuit breaker bases, copper busbars for phase (r-s-t) and neutral distribution, distribution line (lga) to sectional panels, main switch (igm), connection box (ct) with phase identification, grounding system with earth disconnect switch, wiring organized by colors and sections according to use. the file is organized with identifiable layers; differentiated elements and clean diagramming; ideal for executive documentation of electrical installations in residential buildings.
