Macroregional terminal dwg

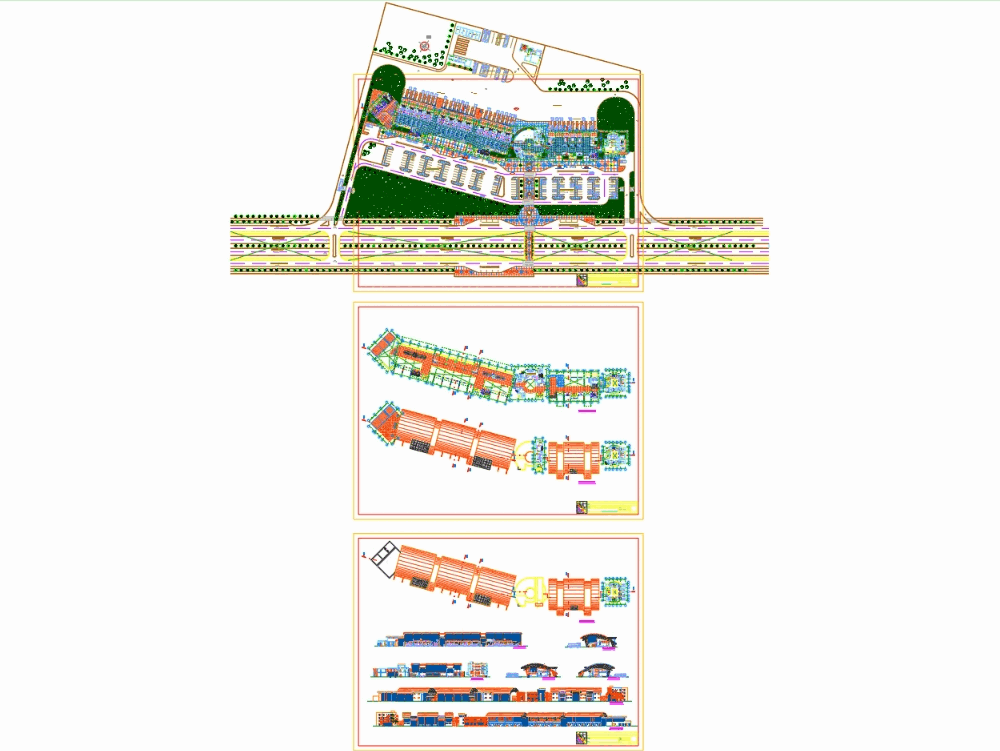

    The pedestrian entrance from the reception space leads us to the area of common complementary services and to the left is the exit area whose main entrances are ranked by the change in coverage that can be seen at the pedestrian level, these entrances lead us to the main hall , where the user is assisted in an information module, in front of it the ticket sales modules are located, in the access axis the controls are also located before going out onto the platforms, in front of the modules is the it waits and as an element to finish off the circulation to the left, the food court is developed. architectural plans, implantation, views and sections are presented.
