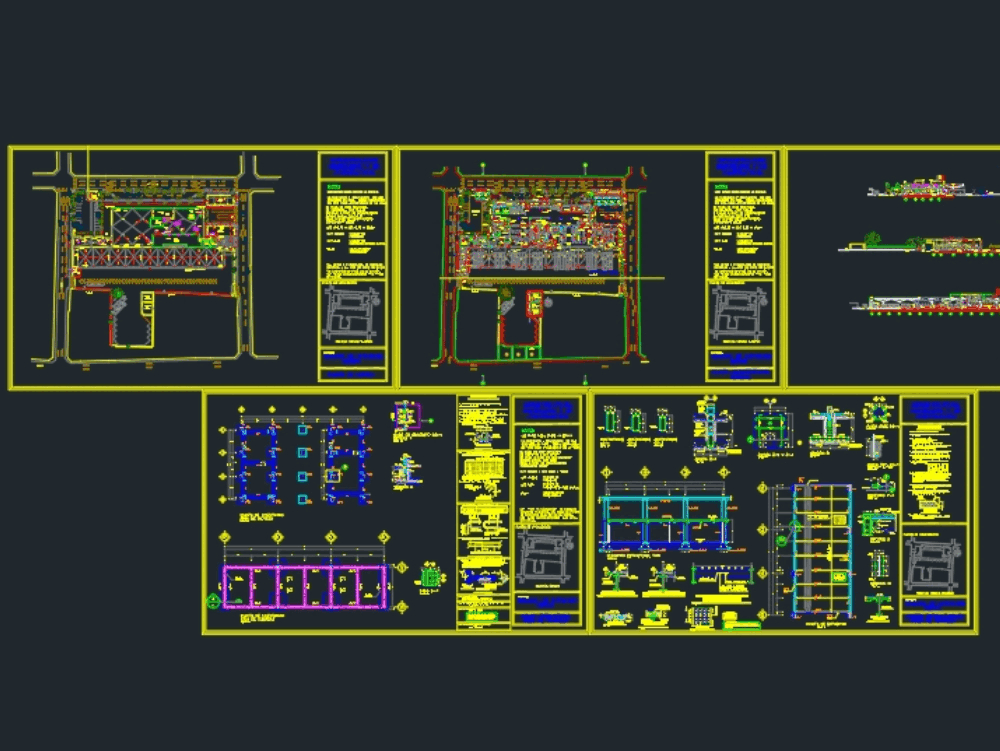

The project has a ticket office area; waiting room (platinum room; pre-board room; arrivals hall and departures hall); service platform area; guardhouse; commercial premises; sanitary; administrative area (promoter's office; general manager; supervisor; reservations area; ticket warehouse; market supervision; secretaries; operations control; kitchen - dining room; clothes storage; restrooms) the structural project consists of isolated and continuous footings; metal columns; concrete wall; mezzanine floor (zero slab); existing slab (coffers) and inverted umbrellas (platform area) the file contains: 1. roof plan 2. architectural plan 3. architectural sections 4 and 5. plans and structural details
