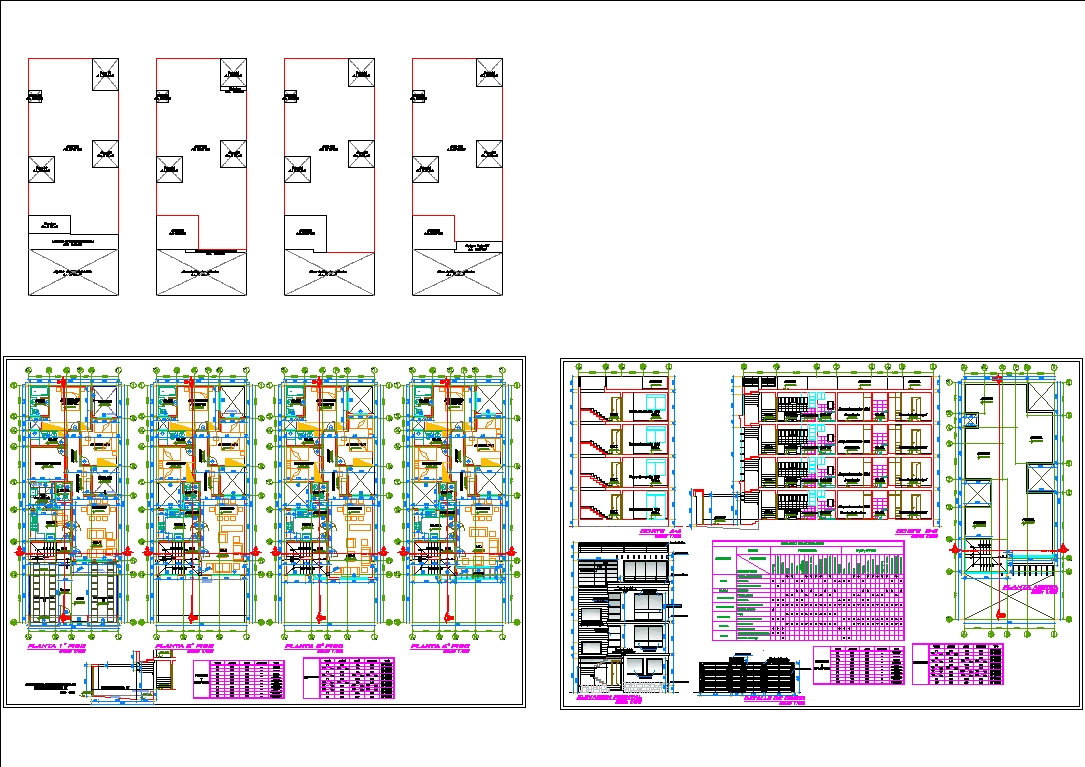

Building departements dwg
Specification general the building license herein is to describe the characteristics of a project called building of departments; in order to obtain respective construction license. project description the building department is composed of 01 building 04 departments; parking area for 02 january and public areas such as income; the staircase to the departments and the roof; arranged as follows: first floor: 01 entrance; parking 02; 01 garden; hall 01; 01 stairs to 2nd floor; department 01 101 consists of the following environments: living; dining room with terrace; kitchen; patio - laundry; desk; ½ restrooms visiting; aisle; restrooms common; 01 sewing room; 01 bedroom with closet; and 01 master bedroom with closet; terrace and restrooms private. ? second floor: 01 stairs to 3rd floor; hall 01; department 01 201 consists of the following environments: living; dining; kitchen; laundry; desk; ½ restrooms visiting; aisle; restrooms common; 02 bedrooms with closet; and 01 master bedroom with closet and restrooms private. ? third floor: 01 stairs to 4th floor; hall 01; department 01 301 consists of the following environments: living; dining; kitchen; laundry; desk; ½ restrooms visiting; aisle; restrooms common; 02 bedrooms with closet; and 01 master bedroom with closet and restrooms private. ? fourth floor 01 stairway to the roof; hall 01; department 01 401 consists of the following rooms: living room with balcony; dining; kitchen; laundry; desk; ½ restrooms visiting; aisle; restrooms common; 02 bedrooms with closet; and 01 master bedroom with closet and restrooms private. ? roof: roof. finishes table environments that make up each department have the following finishes: wallcoverings: son of frotachado without finishing; painted with washable latex paint; interior and exterior walls. ? ceilings: cement mortar are painted with white latex paint. ? floors: they are coated with ceramic national color on the stairs; bathrooms; kitchen; laundry bedrooms and terraces. in the room and corridors it is arranged porcelain. sockets: son of national ceramic color; it is floor to ceiling in main and secondary bathrooms; to a height of 1.50 meters. in the guest bathroom and service; to 1.50 in the kitchen and laundry. they contrazócalos: are national colored pottery with a height of 0.10 m .; they are arranged along the walls meet the floors. sanitary: are national color in the main bathroom; secondary and visit. in the master bath has planned to install a type one piece toilet. faucets: they are chromed bronze for cold water and mixer hot and cold water in the sinks and showers. under pastry kitchen: tarrajeada is masonry and covered with porcelain; in the case of the working group; it is lined with granite. repostero doors are mdf board type. laundries: the kitchen sink is stainless steel; the laundry tub is vitrified losa. doors: the interior doors are mdf board with screw frame; they are the main doors i machimbrado screw screw frame. the locks are of type knob for interior doors and recessed type in the case of the main doors. the hinges are the heavy and aluminized type nasturtiums. ? windows: glass transparent oil are 6 mm. for windows that face the main facade and the windows facing the courtyards. screens; they are clear glass 8 mm. outlets and switches: the plates are kind of ticino modus series; ivory; the copper wires used are standardized in size indicated in the respective planes. metalwork: in the stair railings and railings of the terraces. they are black tube ø2 ?; electro soldier; painted with anti-corrosive paint and chrome finish. join gates: son of black square electro-welded tube and the dimensions shown in the drawings; with pine wood slats and bolts. they are painted with anti-corrosive paint and finished with enamel paint. the gates of the depot system will have an automatic drawbridge electric motor. electrical system: the building has a bank of meters comprised of 05 meters; 01 for each department and 01 meter common services. it also has a special pass box for load balancing and electrical protection system in the siege. the apartments have a 01 switchboard; lighting circuits; outlets; heaters; electro pump and control system grounding. all power supply is provided through pvc pipes and cables they have been used type tw and thw. ? health system: the project has 04 independent drinking water supplies; 04 meters; 04 tanks of 1.1 m3 c / u; and 04 elevated tanks rotoplast type 0.6 m3 c / u located on the roof. installation of cold water networks have been used class 10 type pvc pipes; for hot water network type have been used for cpvc pipe and drainage network pvc pipes have been used - sal.
