Asymmetrical partition screen rfa

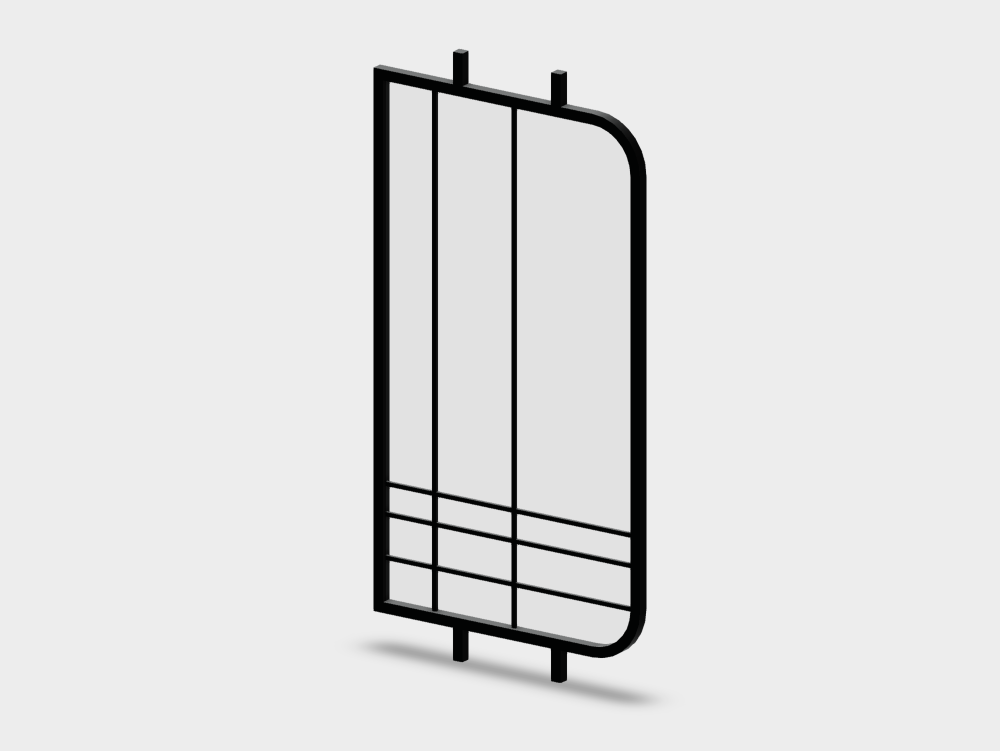

This revit family represents an asymmetrical partition wall, designed with a tubular metal frame and polycarbonate infill panels, offering a modern, lightweight, and translucent finish. it features a curved top edge and a grid pattern at the bottom, facilitating subtle zoning of commercial or work areas without blocking natural light. the family is parameterizable, allowing for easy adjustment of dimensions to suit project needs. two types are available: type 1: 115 cm wide x 260 cm high x 5 cm deep. type 2: 140 cm wide x 280 cm high x 5 cm deep. this model was developed in revit 2020.
